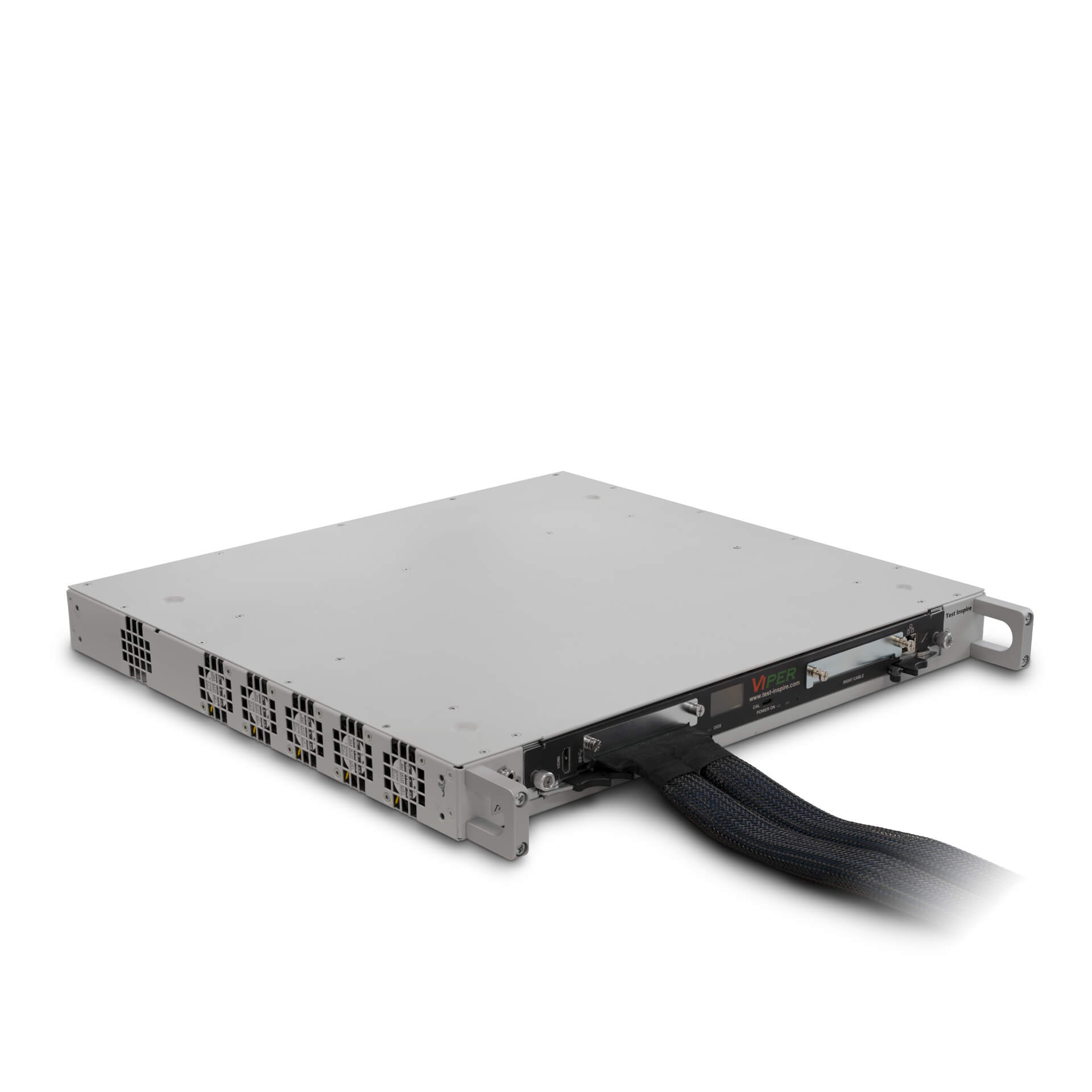

Waveform Digitizer with automated Glitch and Transient detect
VIPER portable solutions can be shared across different test setups and are backward compatible with existing test applications.
Test Options Technology
- PUMA DPS-PPMU-Dpin
- 324 Configurable Channels
- DPS/PPMU: -1 to 5V @ 256mA
- Dpin: -1 to 5V @ 50MB/s

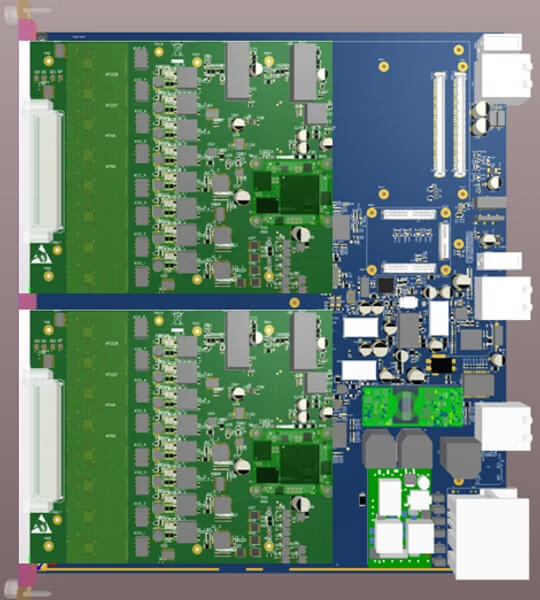

- LYNX Digitizer
- 32 Channels
- 14 bits
- 100MS/s
- 16MSamples memory
- 2 Ranges
- TIGER, Reference Design: Four Quadrant VI
- 6 Channels Four Quadrant VI
- 5µA to 1.0A, 7 current ranges
- -7V to +36V, 3 voltage ranges
- Programmable Current/Voltage
Design Framework
- VIPER
- 6 Test Options per VIPER
- From single-slot case to 14-slot configuration
- 400W total power
- Master and/or Slave configurable
- Synchronization & Triggering
- LAN, PCIe, USB connections
- ATE software drivers available
- Standard and custom Signal Delivery technology
Customization Services
Powerful and scalable VIPER architecture gives the opportunity to design custom T&M modules based on your requirements.
Typical Application: Characterization, Validation, Production Test.
Reasons Why
VIPER embeds SW tools, calibration and diagnostics
VIPER analyses and detect DUT waveform Glitches and Transients
For characterization test benches and mass production test cells
Product Presentation
Viper is a massive parallel high speed Voltage measurement system
- 32 to 1000’s of channels
- Marks location in test program of extreme events
Requirement to measure Contact Resistance
- Current measurement is intrusive, requires path change from tester to DUT
- Voltage measurement can be added even on existing loadboard by adding wires/traces
New method to identify contact resistance issues by only measuring less intrusive Voltages
- Identify location in test program where/if excessive current is used
- Can be added to existing setups to debug issues
- No need to redesign interface boards / probe cards
FEATURES
Viper
Dimensions
D⨯W⨯H

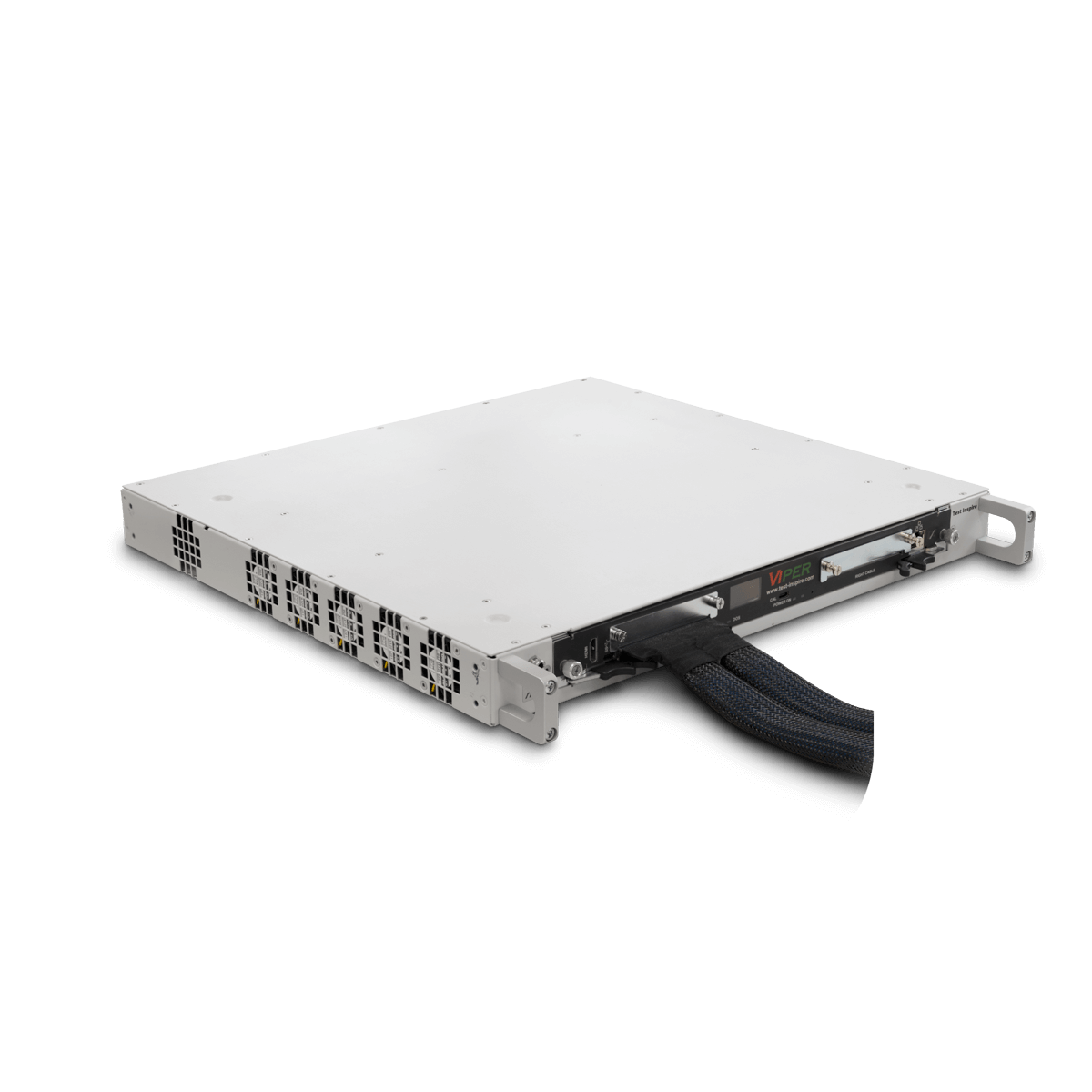

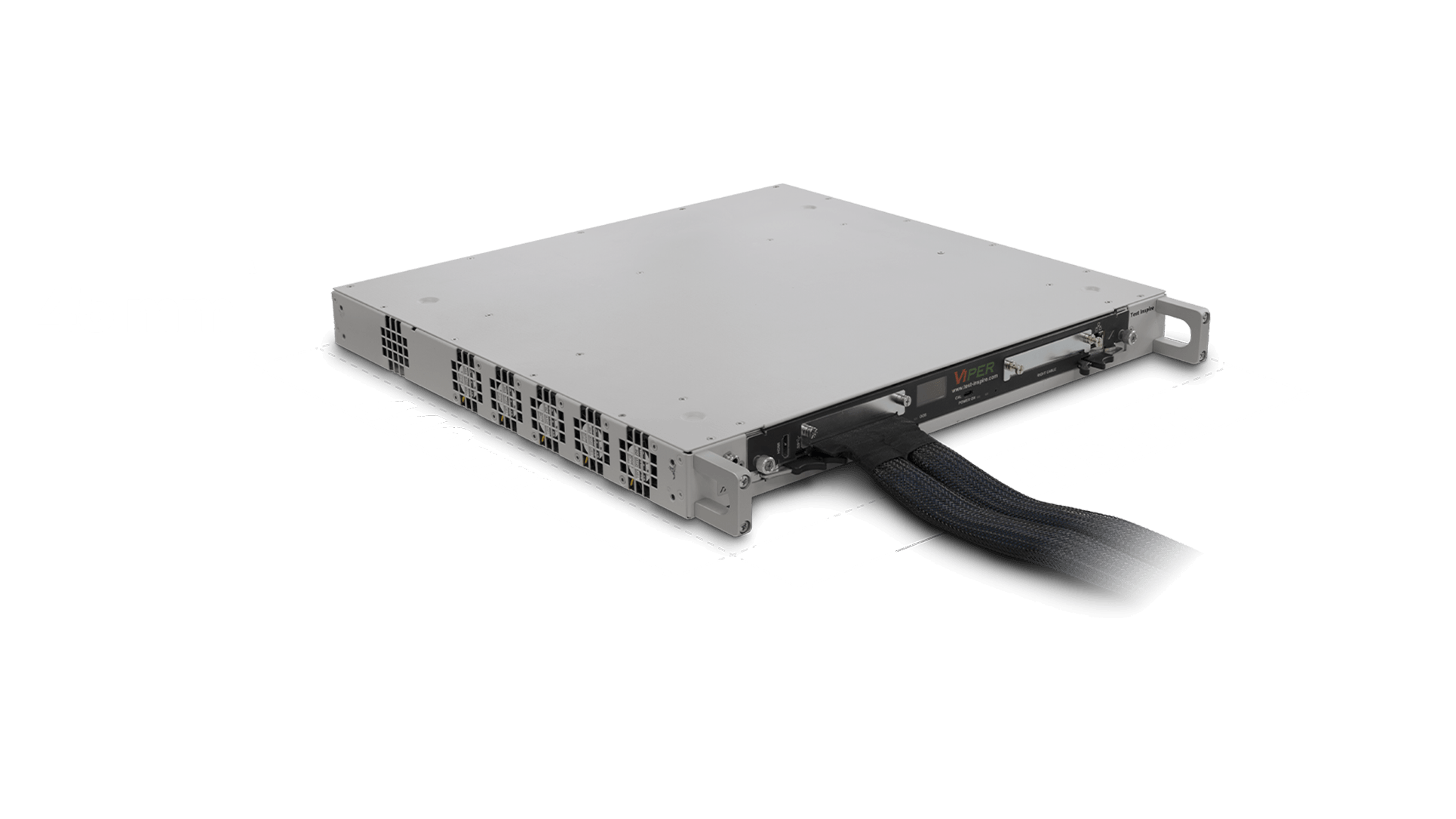

405mm x 440mm x 45mm

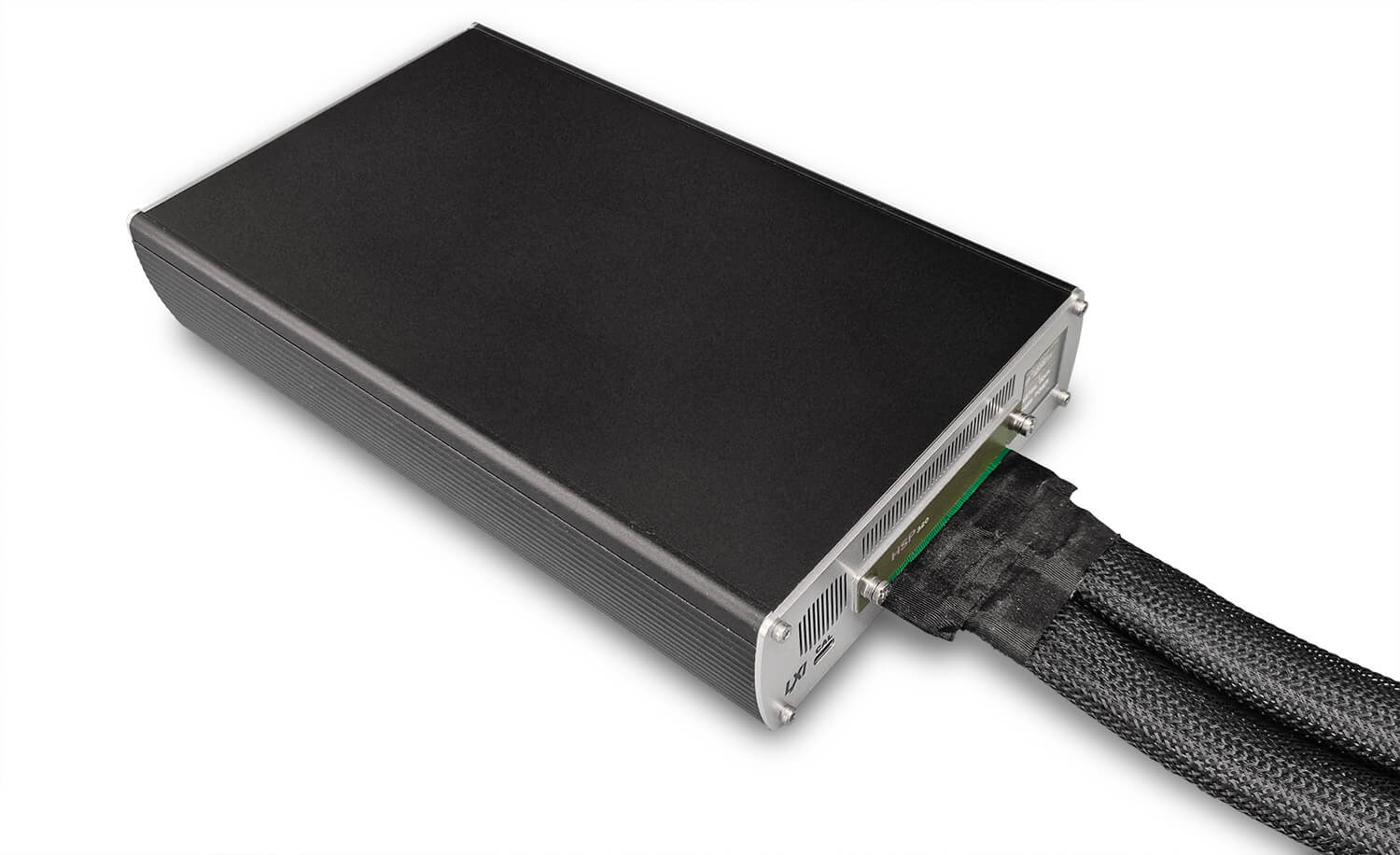

Measurements Instruments
AWG/TMS/Differential Voltage Meter
Up to 192 channels (6*32 channels waveform capture/digitizer)
Differential input with independent AGND
Programmable sample rate up to 100Msps
Up to 14 bits resolution
Independent ranges per channel 2 input ranges up to +-7.5V and +-75V
1GByte capture shared memory
Digital trigger per channel
Hardware Sync/trigger
Differential input with independent AGND
Programmable sample rate up to 100Msps
Up to 14 bits resolution
Independent ranges per channel 2 input ranges up to +-7.5V and +-75V
1GByte capture shared memory
Digital trigger per channel
Hardware Sync/trigger
